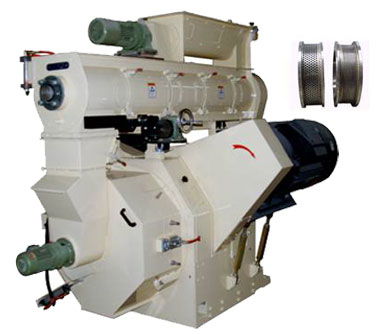

Wood Pellet Making Machine --- Ring Die

This series of wood pellet making machine is widely used for processing wood, straw and other biomass materials. It features in high performance, low cost, easy maintenance and long life. The key parts are made of alloy steel, so that are very strong and malleable. And the die is made of stainless steel. The capacity ranges from 200kgs to 3 tons per hour.

Wood Pellet Making Machine advantages:

1. Positive direct gear drive provides a 98% energy transfer - meaning less energy wasted
2. Segmented die clamps eliminate alignment problems and enable quicker die changes
3. Metal-to-metal seals between components keep dust and steam inside the pelleting chamber
4. Stand-alone oil lubrication system is more effective in maintaining lubrication and keeping the bearings from premature wear
5. Stainless steel ring die resists corrosion and lasts longer.
6. Multi-positioning feeder enables easier installation and alignment to bins.

KMPM Series Wood Pellet Making Machine:

EFB	Softwood	Hardwood
EFB Pellets	Softwood Pellets	Hardwood Pellets

This series of pellet mill is designed to make pellets from pinewood sawdust, oil palm materials such as Empty Fruit Bunch (EFB), mesocarp fibre, etc.

Type	KMPM350 Gear Drive
Power
Conditioner	2.2Kw
Screw Feeder	0.75Kw Frequency Control
Force Feeder	0.55Kw
Capacity	500Kg/Hr

This series of pellet mill is designed to make pellets from softwood sawdust and EFB.

Type	KMPM420 Belt Drive
Power	Main Motors 90Kw
Conditioner	5.5Kw
Screw Feeder	0.75Kw Frequency Control
Force Feeder	0.55Kw
Capacity	800~1000Kg/Hr

This series of pellet mill is designed to make pellets from tropical hardwood sawdust.

Type	KMPM520 Belt Drive
	Main Motors 75Kw×2 Sets,Total 150 Kw
Conditioner	7.5Kw
Screw Feeder	2.2Kw Frequency Control
Force Feeder	1.1Kw
Capacity	2000Kg/Hr for teakwood sawdust. 3500Kg/Hr for pinewood sawdust.

This series of pellet mill is designed to make pellets from tropical hardwood sawdust.

Type	KMPM650 Belt Drive
Power	Main Motors 110Kw×2 Sets, Total 220 Kw
Conditioner	7.5Kw
Screw Feeder	3Kw Frequency Control
Force Feeder	1.5Kw
Capacity	2000Kg/Hr for teakwood sawdust. 3500Kg/Hr for pinewood sawdust.
