| Pellet
Mill---Ring Die |
|
| Feature:
|
Driven
with heavy- duty gearbox construction can produce continuously
in most adverse condition. The imported key elements are of
high performance with long life and low maintenance cost.
The key parts are made of alloy steel to be very strong and
malleable. Die is made of stainless steel. Pellet machine
is widely used in the granulation of wood, straw, other biomass
sources. capacity ranges from 200kgs to 3T per hour.

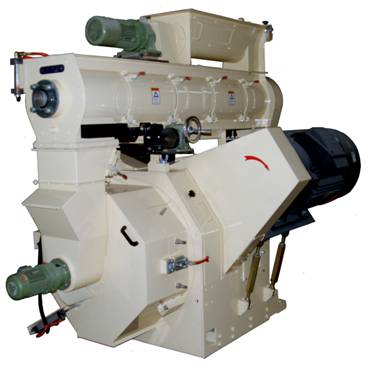

Ring Die Pellet Mill
It’s designed to make pellets from pinewood sawdust, oil palm material such as Empty Fruit Bunch(EFB), mesocarp fibre,etc. The raw mateiral is available in large quantity.
Type: KMPM350 gear drive
Power: Main motors 55 Kw
Conditioner 2.2 Kw
Screw feeder 0.75Kw frequency control
Force feeder 0.55Kw
Capacity: 500 Kg/Hr
Ring Die Pellet Mill
Designed to make pellets from softwood sawdust and EFB.
Type: KMPM420 belt drive
Power: Main motors 90 Kw
Conditioner 5.5Kw
Screw feeder 0.75Kw frequency control
Force feeder 0.55Kw
Capacity: 800-1000 Kg/Hr
Ring Die Pellet Mill
Designed to make pellet from tropical hardwood sawdust.
Type: KMPM520 belt drive
Power: Main motors 75Kw*2 sets,total 150 Kw
Conditioner 7.5Kw
Screw feeder 2.2 Kw frequency contro
Force feeder 1.1 Kw
Capacity: 1500 kgs per hour to process teakwood sawdust pelletizing;
2000 kgs per hour to process pinewood sawdust pelletizing.
Ring Die Pellet Mill
Designed to make pellet from tropical hardwood sawdust.
Type: KMPM650
Power: Main motors 110 Kw*2 sets,total 220 Kw
Condiertion 7.5Kw
Screw feeder 3 Kw frequency control
Force feeder 1.5 Kw
Capacity: 2000 kgs per hour to process teakwood sawdust pelletizing;
3500 kgs per hour to process pinewood sawdust pelletizing. |
Pellet
Press/Granulator/Pelletiser---Flat Die
The PK
series of Plane grinding granule feed machine can process
the oil cake and other mixed waste material to granule at
one time. And it is columned granule feed and have slippery
firm. During the process of producing granule, the temperature
can almost reach 70-80 centigrade. It can make fecula
into paste. The inner granule is cooked and fully penetrating,
and is not easy to go moldy and degenerative. Then it can
be stored for a long time and improve poultry dainty and
assimilation function. It also can shorten the period of
feeding, so it can efficiently guarantee many users' productive
cost.
| Model |
Capacity |
Power |
Net Weight |
Outside dimension |
| GC-9PK-200 |
80-120kg/h |
7.5kw |
250kg |
100*43*95cm |
| GC-9PK-260 |
150-200kg/h |
15kw |
330kg |
120*50*107cm |
| GC-9PK-300 |
200-250kg/h |
22kw |
410kg |
127*52*107cm |
| GC-9PK-400 |
300-350kg/h |
30kw |
550kg |
147*60*115cm |
|
|
|
 |
|
|
| |
|
| |
|
| |
| |
Mobile Pellet Plant
|
|
| |
200-300KGS Per Hour
Less labor intensive, automatic process, cooled pellets pack quickly
|
|
|
|
| |
|
|
| |
|
| |
|
| |
|
|
