Ring Die Pellet Mill

This series of Ring Die Pellet Mill is widely used in processing wood, straw and other biomass materials. It features in high performance, low cost, long life and easy maintenance. The key parts are made of alloy steel. And the die is made of stainless steel. The capacity ranges from 200 kg/s to 3 tons per hour. This series of pellet mill is designed to make pellets from sawdust, oil palm materials such as Empty Fruit Bunch (EFB), mesocarp fibre, etc.


Palm Fiber	Shredded Palm EFB Fibre	Palm EFB Pellet

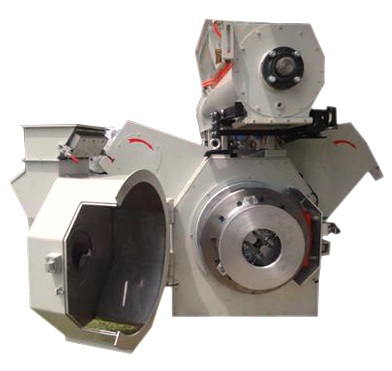

Type	KMPM350 Gear Drive
Power	Main Motors 55Kw
Conditioner	2.2Kw
Screw Feeder	0.75Kw Frequency Control
Force Feeder	0.55Kw
Capacity	500Kg/Hr

This series of pellet mill is designed to make pellets from softwood sawdust and EFB.

Softwood Sawdust	Softwood Pellets

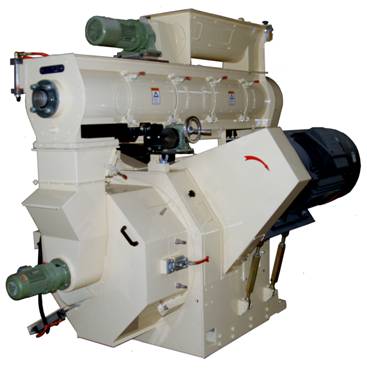

Type	KMPM420 Belt Drive
Power	Main Motors 90Kw
Conditioner	5.5Kw
Screw Feeder	0.75Kw Frequency Control
Force Feeder	0.55Kw
Capacity	800~1000Kg/Hr

This series of pellet mill is designed to make pellets from tropical hardwood sawdust.

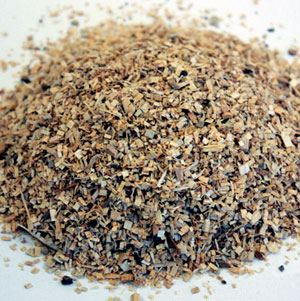

hardwood	Hardwood Sawdust	Hardwood Pellets

Type	KMPM520 Belt Drive
Power	Main Motors 75Kw×2 Sets,Total 150 Kw
Conditioner	7.5Kw
Screw Feeder	2.2Kw Frequency Control
Force Feeder	1.1Kw
Capacity	2000Kg/Hr for teakwood sawdust. 3500Kg/Hr for pinewood sawdust.

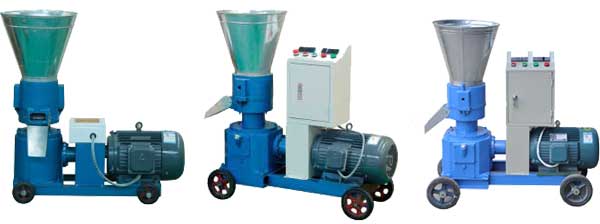

Flat Die Pellet Mill

The PK series of flat die pellet mill can process the oil cake and other mixed waste materials into pellets at one time. The final pellets are columned and slippery. During the process, the temperature can almost reach 70-80℃.This machine can make fecula into paste. The pellet is fully cooked penetrable. And it is not easy to go moldy and degenerative. So it can be stored for a long time and improved poultry dainty and assimilation function. With shorter period of feeding, it can save many users' productive cost efficiently.


Model	Capacity(kg/h)	Power(kw)	Net Weight(kg)	Outside dimension(cm)
GC-9PK-200	80-120	7.5	250	100*43*95
GC-9PK-260	150-200	15	330	120*50*107
GC-9PK-300	200-250	22	410	127*52*107
GC-9PK-400	300-350	30	550	147*60*115
